#80H Heavy Duty Roller Chain x 10 feet + Free Connecting Link

#80H Heavy Duty Roller Chain x 10 feet + Free Connecting Link

ANSI No

 #80H LENGTH 10 ft
PITCH 1.0 inch (25.400 mm) ROLLER DIAMETER
(D1 MAX) 		 0.625 inch (15.88 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.620 inch (15.75 mm) PIN DIAMETER
(D2 MAX)		  0.311 inch (7.92 mm)
PIN LENGTH
(L MAX)		 1.425 inch (36.20 mm) PIN LENGTH
(LC MAX)		 1.484 inch (37.70 mm)
INNER PLATE DEPTH
(H2 MAX)		  0.944 inch (24.00 mm) PLATE THICKNESS
(T MAX)		 0.157 inch (4.00 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 56.70/12886 kN/LB WEIGHT  2.083 lb/ft (3.1 kg/m)
$15.44

Original: $51.45

-70%
#80H Heavy Duty Roller Chain x 10 feet + Free Connecting Link—

$51.45

$15.44
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

ANSI No

 #80H LENGTH 10 ft

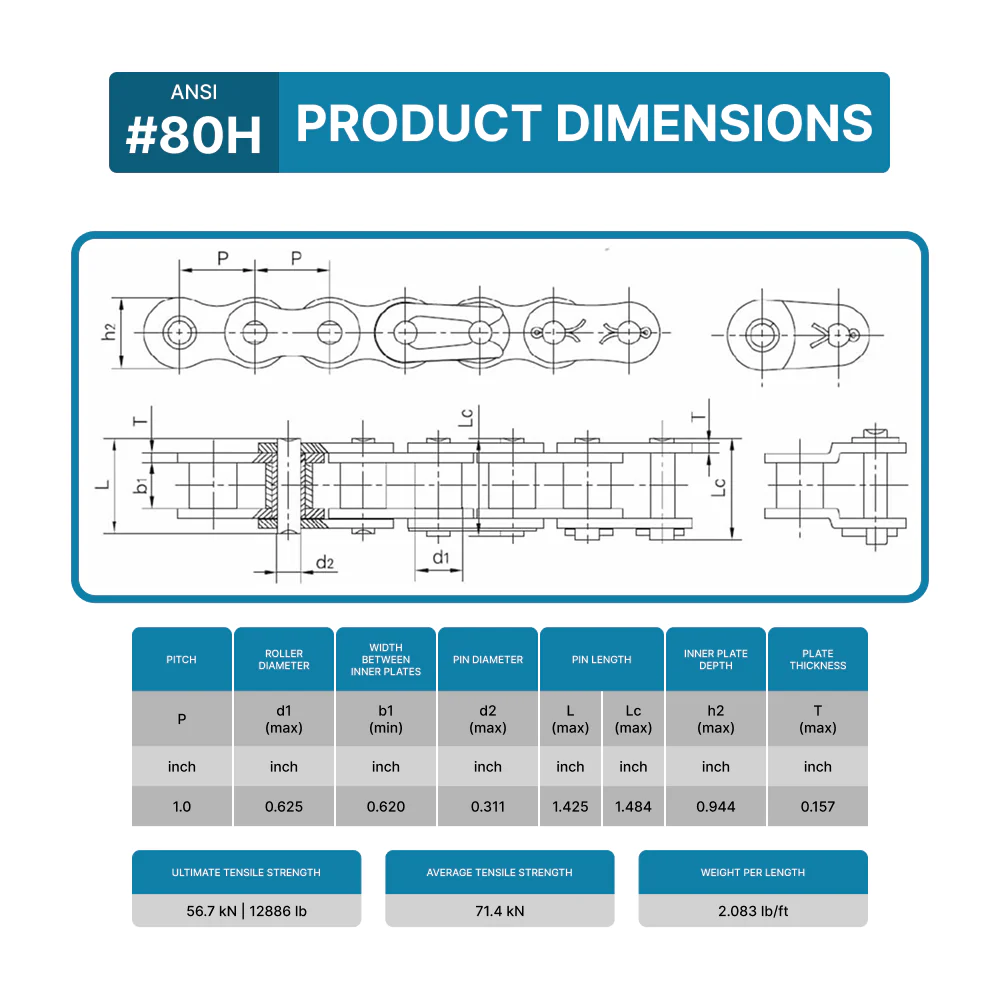

PITCH 1.0 inch (25.400 mm) ROLLER DIAMETER
(D1 MAX) 		 0.625 inch (15.88 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.620 inch (15.75 mm) PIN DIAMETER
(D2 MAX)		  0.311 inch (7.92 mm)
PIN LENGTH
(L MAX)		 1.425 inch (36.20 mm) PIN LENGTH
(LC MAX)		 1.484 inch (37.70 mm)
INNER PLATE DEPTH
(H2 MAX)		  0.944 inch (24.00 mm) PLATE THICKNESS
(T MAX)		 0.157 inch (4.00 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 56.70/12886 kN/LB WEIGHT  2.083 lb/ft (3.1 kg/m)
