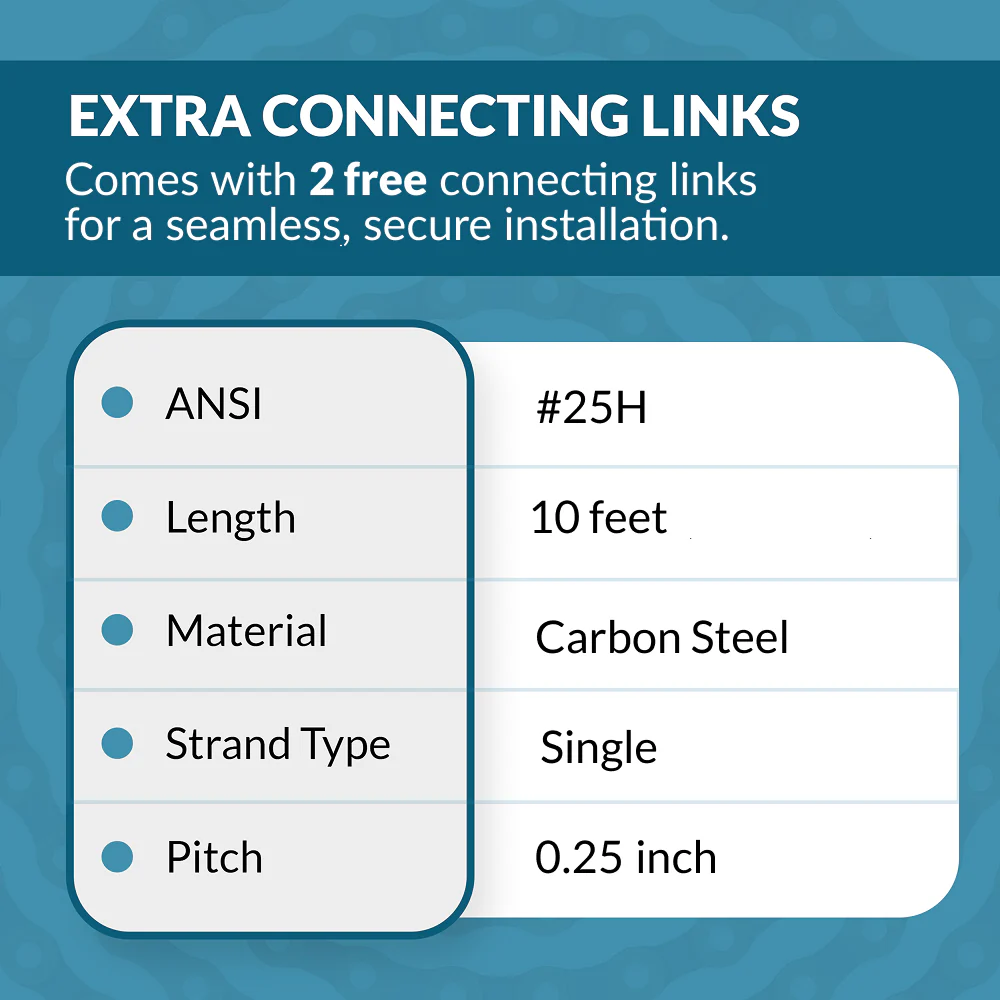

#25H Heavy Duty Roller Chain x 10 feet + 2 Free Connecting Links

#25H Heavy Duty Roller Chain x 10 feet + 2 Free Connecting Links

ANSI No

 #25H LENGTH 10 ft
PITCH 0.25 inch (6.350 mm) ROLLER DIAMETER
(D1 MAX) 		 0.130 inch (3.30 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.125 inch (3.18 mm) PIN DIAMETER
(D2 MAX)		 0.091 inch (2.31 mm)
PIN LENGTH
(L MAX)		 0.350 inch (8.90 mm)
 PIN LENGTH
(LC MAX)		  0.374 inch (9.5 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.236 inch (6.0 mm) PLATE THICKNESS
(T MAX)		  0.041 inch (1.04 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		  4.80/1091 kN/LB WEIGHT  0.114 lb/ft (0.17 kg/m)
$3.46

Original: $11.52

-70%
#25H Heavy Duty Roller Chain x 10 feet + 2 Free Connecting Links—

$11.52

$3.46
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

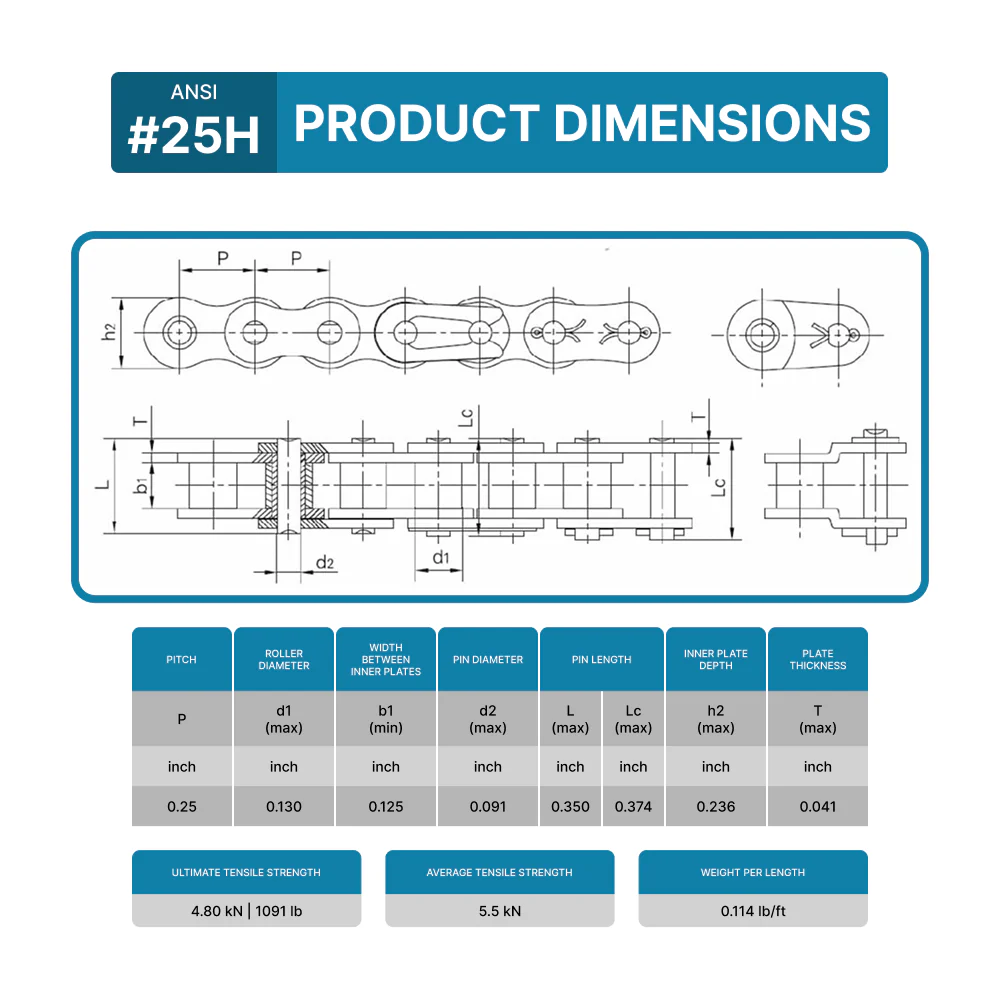

ANSI No

 #25H LENGTH 10 ft
PITCH 0.25 inch (6.350 mm) ROLLER DIAMETER
(D1 MAX) 		 0.130 inch (3.30 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.125 inch (3.18 mm) PIN DIAMETER
(D2 MAX)		 0.091 inch (2.31 mm)
PIN LENGTH
(L MAX)		 0.350 inch (8.90 mm)
 PIN LENGTH
(LC MAX)		  0.374 inch (9.5 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.236 inch (6.0 mm) PLATE THICKNESS
(T MAX)		  0.041 inch (1.04 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		  4.80/1091 kN/LB WEIGHT  0.114 lb/ft (0.17 kg/m)
