#41 Roller Chain x 3 feet + Free Connecting Link

#41 Roller Chain x 3 feet + Free Connecting Link

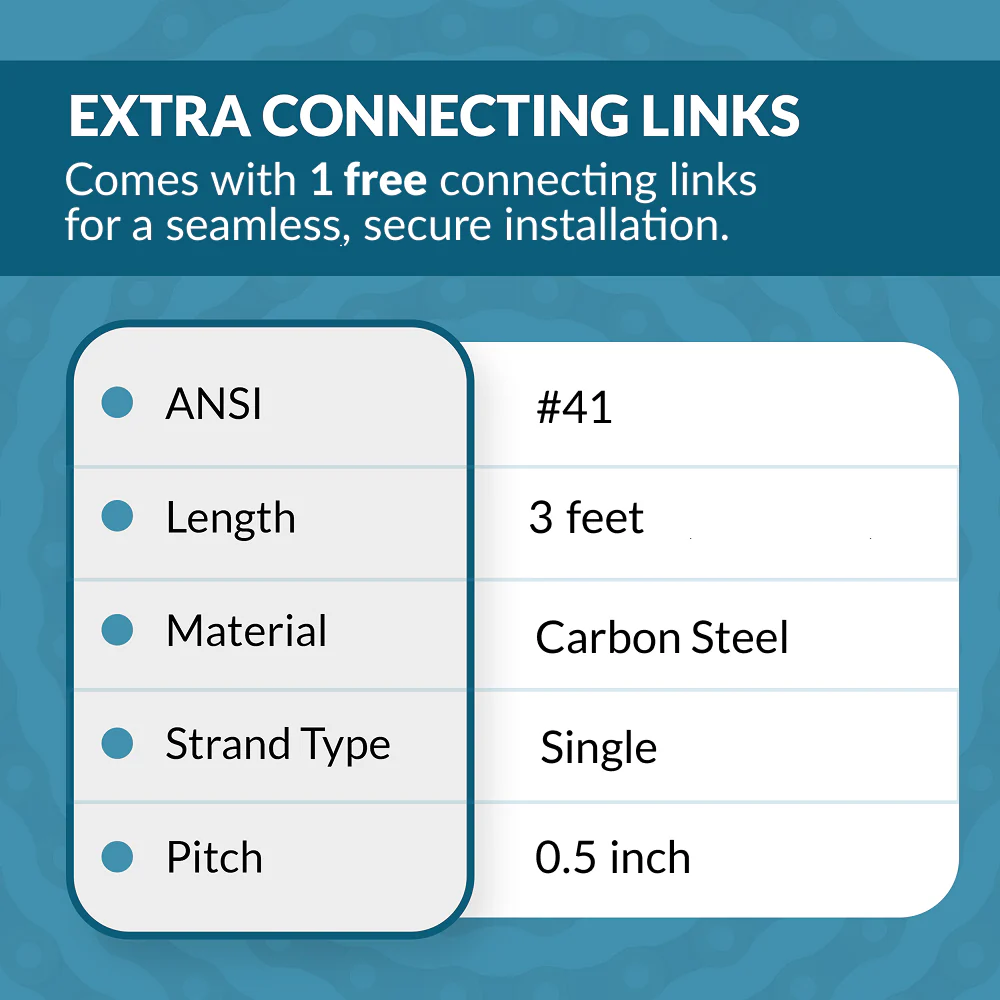

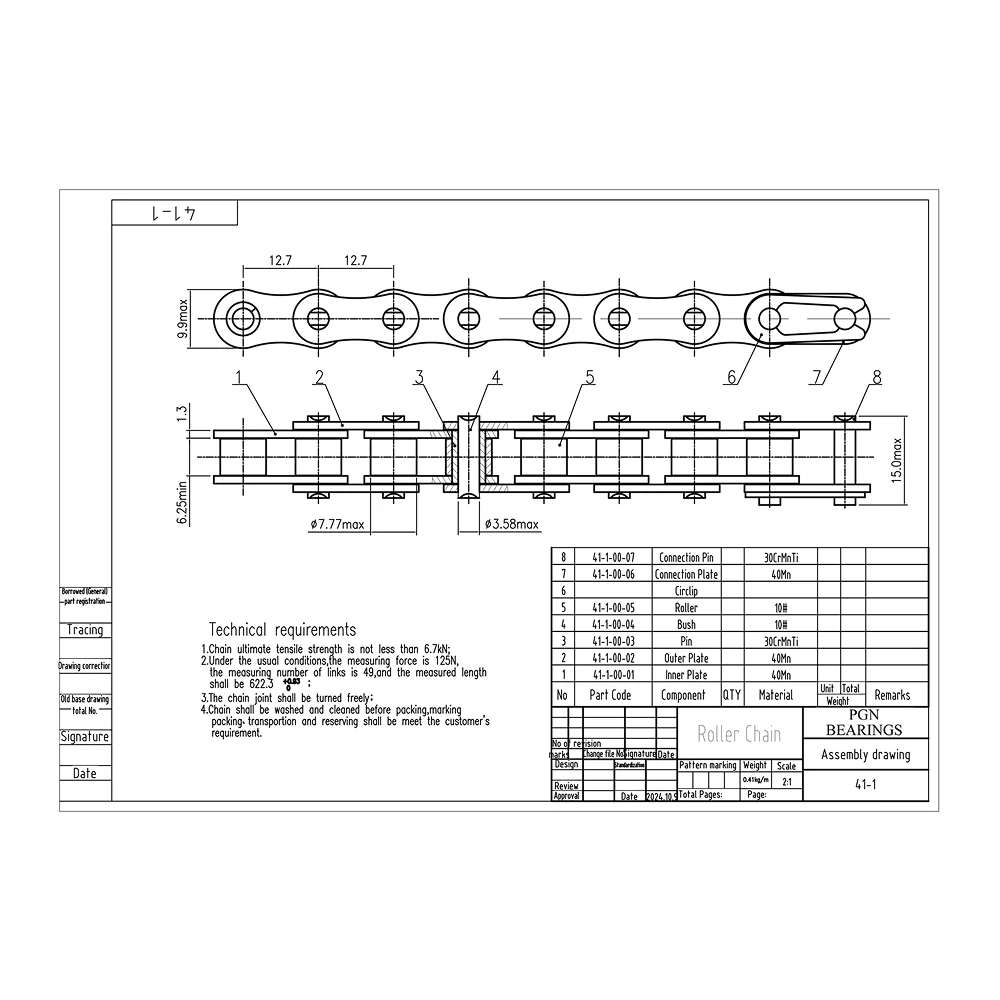

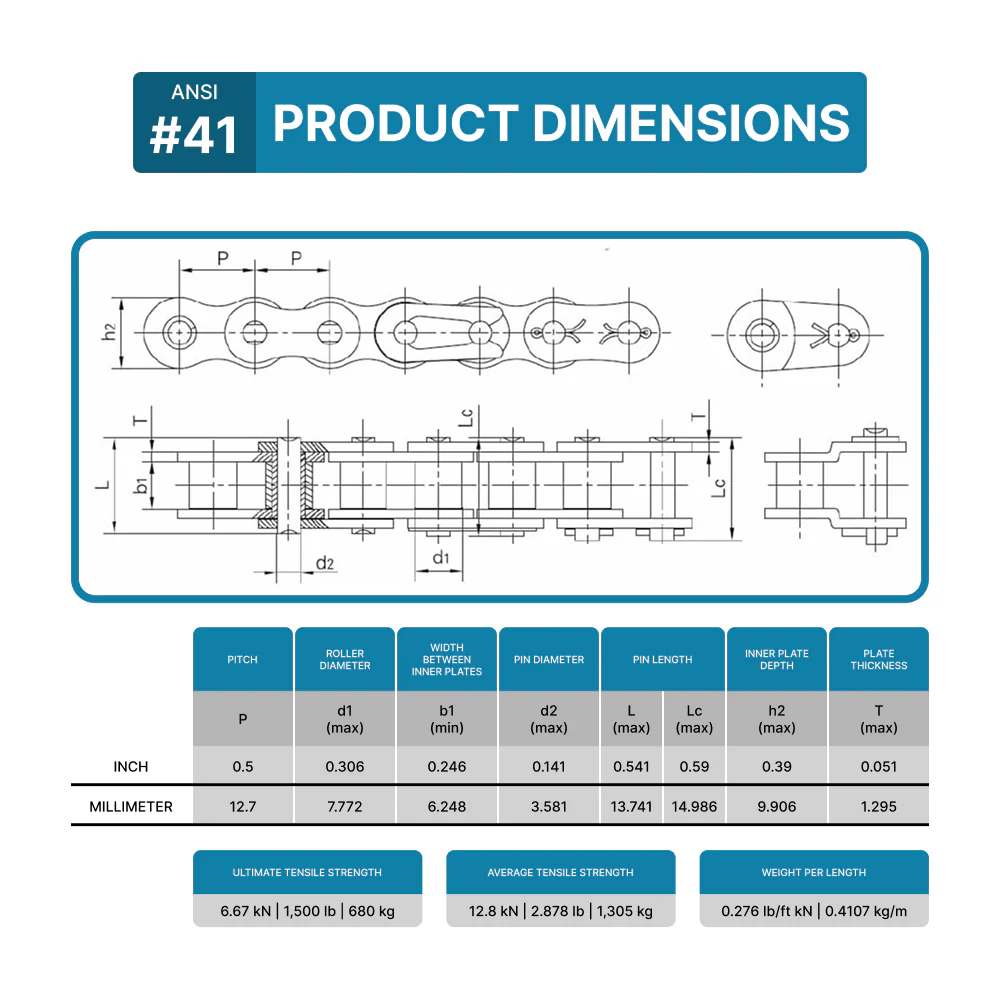

ANSI No

 #41 LENGTH 3 ft
PITCH  0.5 inch (12.7 mm)  ROLLER DIAMETER
(D1 MAX) 		 0.306 inch (7.77 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		  0.246 inch (6.25 mm)  PIN DIAMETER
(D2 MAX)		 0.141 inch (3.58 mm)
PIN LENGTH
(L MAX)		 0.541 inch (13.75 mm) PIN LENGTH
(LC MAX)		  0.590 inch (15.00 mm)
INNER PLATE DEPTH
(H2 MAX)		  0.390 inch (9.91 mm) PLATE THICKNESS
(T MAX)		 0.051 inch (1.30 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 6.67/1516 kN/LB WEIGHT  0.276 lb/ft (0.41 kg/m)
$2.33

Original: $7.77

-70%
#41 Roller Chain x 3 feet + Free Connecting Link—

$7.77

$2.33
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

ANSI No

 #41 LENGTH 3 ft
PITCH  0.5 inch (12.7 mm)  ROLLER DIAMETER
(D1 MAX) 		 0.306 inch (7.77 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		  0.246 inch (6.25 mm)  PIN DIAMETER
(D2 MAX)		 0.141 inch (3.58 mm)
PIN LENGTH
(L MAX)		 0.541 inch (13.75 mm) PIN LENGTH
(LC MAX)		  0.590 inch (15.00 mm)
INNER PLATE DEPTH
(H2 MAX)		  0.390 inch (9.91 mm) PLATE THICKNESS
(T MAX)		 0.051 inch (1.30 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 6.67/1516 kN/LB WEIGHT  0.276 lb/ft (0.41 kg/m)
