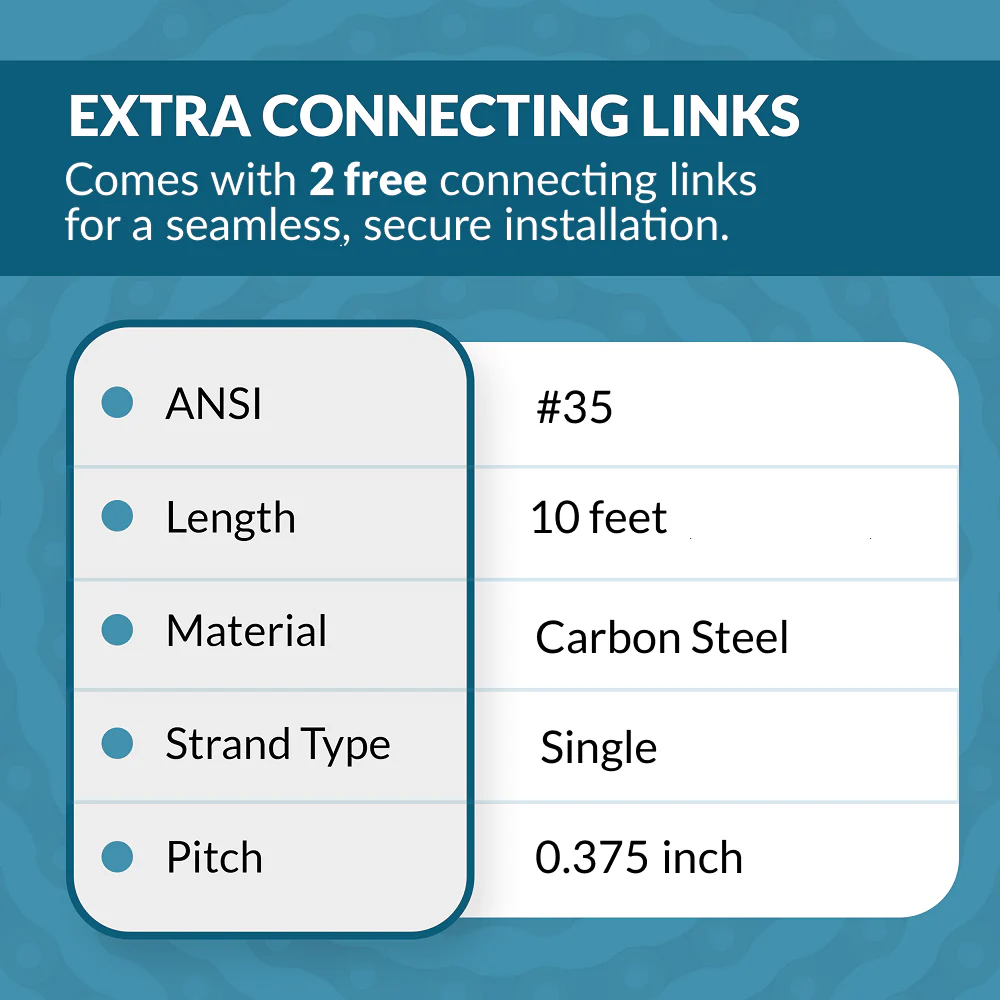

#35 Roller Chain x 10 feet + 2 Free Connecting Links

#35 Roller Chain x 10 feet + 2 Free Connecting Links

ANSI No

  #35 LENGTH 10 ft
PITCH 0.375 inch (9.525 mm) ROLLER DIAMETER
(D1 MAX) 		 0.2 inch (5.08 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.188 inch (4.77 mm) PIN DIAMETER
(D2 MAX)		 0.141 inch (3.58 mm)
PIN LENGTH
(L MAX)		 0.488 inch (12.40 mm) PIN LENGTH
(LC MAX)		 0.518 inch (13.17 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.354 inch (9.0 mm) PLATE THICKNESS
(T MAX)		 0.051 inch (1.30 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		    7.90/1795 kN/LB  WEIGHT  0.221749 lb/ft (0.33 kg/m)
$3.33

Original: $11.10

-70%
#35 Roller Chain x 10 feet + 2 Free Connecting Links—

$11.10

$3.33
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

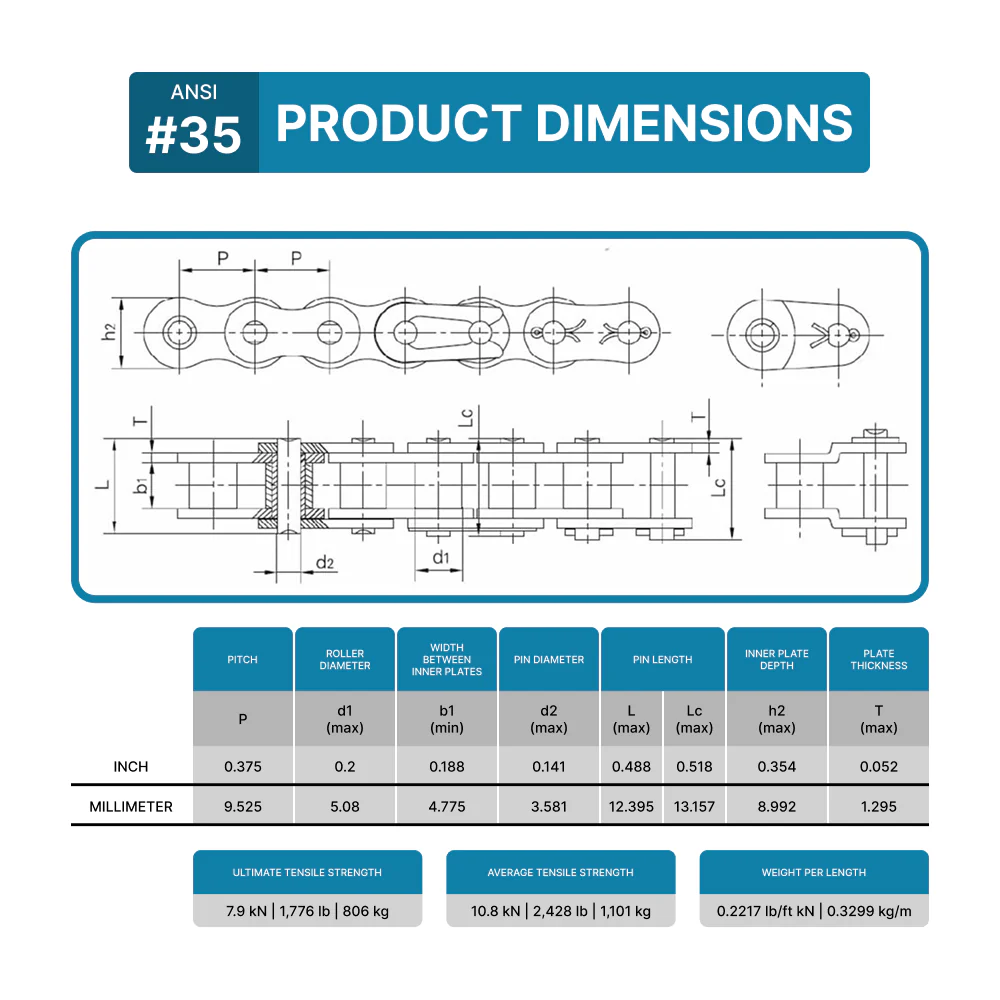

ANSI No

  #35 LENGTH 10 ft
PITCH 0.375 inch (9.525 mm) ROLLER DIAMETER
(D1 MAX) 		 0.2 inch (5.08 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.188 inch (4.77 mm) PIN DIAMETER
(D2 MAX)		 0.141 inch (3.58 mm)
PIN LENGTH
(L MAX)		 0.488 inch (12.40 mm) PIN LENGTH
(LC MAX)		 0.518 inch (13.17 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.354 inch (9.0 mm) PLATE THICKNESS
(T MAX)		 0.051 inch (1.30 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		    7.90/1795 kN/LB  WEIGHT  0.221749 lb/ft (0.33 kg/m)
