#35 Roller Chain x 4 feet + Free Connecting Link

#35 Roller Chain x 4 feet + Free Connecting Link

ANSI No

 #35 LENGTH 4 ft
PITCH 0.375 inch (9.525 mm) ROLLER DIAMETER
(D1 MAX) 		 0.2 inch (5.08 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.188 inch (4.77 mm) PIN DIAMETER
(D2 MAX)		 0.141 inch (3.58 mm)
PIN LENGTH
(L MAX)		 0.488 inch (12.40 mm) PIN LENGTH
(LC MAX)		 0.518 inch (13.17 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.354 inch (9.0 mm) PLATE THICKNESS
(T MAX)		 0.051 inch (1.30 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		    7.90/1795 kN/LB  WEIGHT  0.221749 lb/ft (0.33 kg/m)
$2.25

Original: $7.50

-70%
#35 Roller Chain x 4 feet + Free Connecting Link—

$7.50

$2.25
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

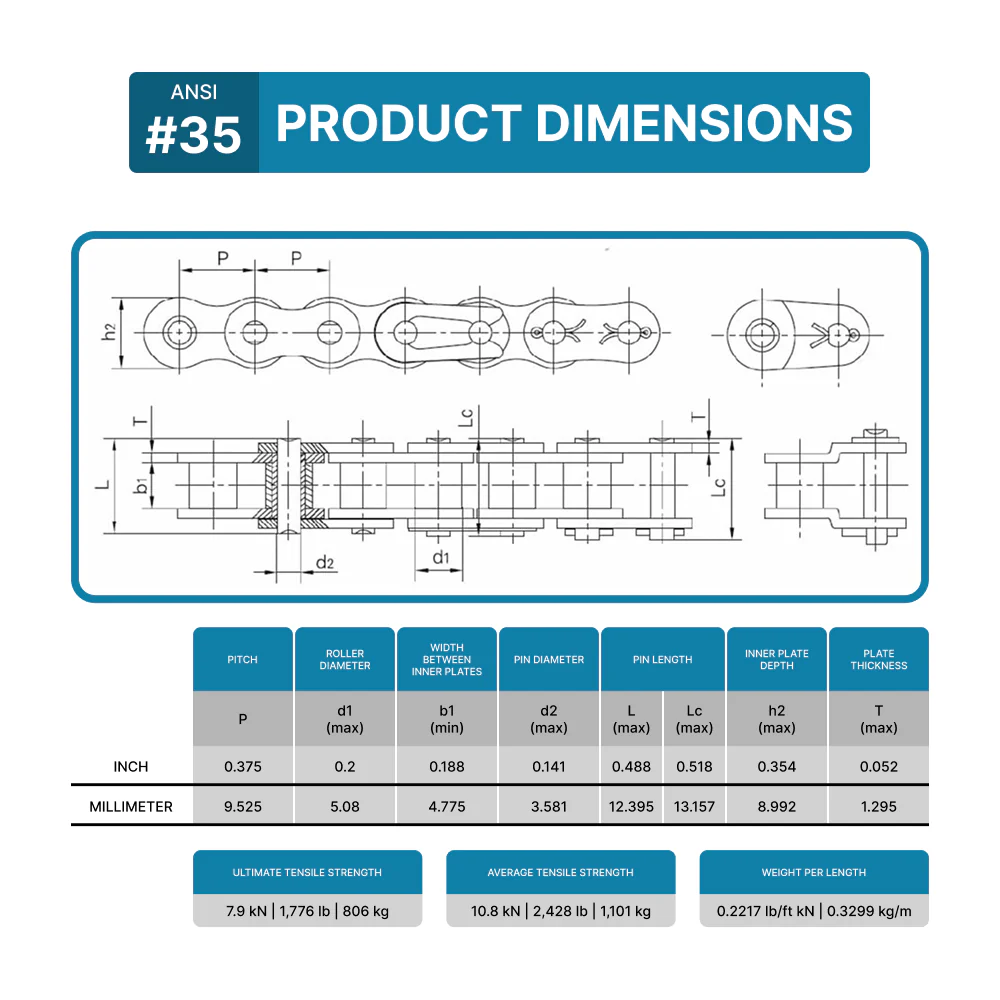

ANSI No

 #35 LENGTH 4 ft
PITCH 0.375 inch (9.525 mm) ROLLER DIAMETER
(D1 MAX) 		 0.2 inch (5.08 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.188 inch (4.77 mm) PIN DIAMETER
(D2 MAX)		 0.141 inch (3.58 mm)
PIN LENGTH
(L MAX)		 0.488 inch (12.40 mm) PIN LENGTH
(LC MAX)		 0.518 inch (13.17 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.354 inch (9.0 mm) PLATE THICKNESS
(T MAX)		 0.051 inch (1.30 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		    7.90/1795 kN/LB  WEIGHT  0.221749 lb/ft (0.33 kg/m)
