#25 Roller Chain x 10 feet + 2 Free Connecting Links

#25 Roller Chain x 10 feet + 2 Free Connecting Links

ANSI No

 #25 LENGTH 10 ft
PITCH 0.25 inch (6.350 mm) ROLLER DIAMETER
(D1 MAX) 		 0.130 inch (3.30 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.125 inch (3.18 mm) PIN DIAMETER
(D2 MAX)		 0.091 inch (2.31 mm)
PIN LENGTH
(L MAX)		 0.311 inch (7.90 mm) PIN LENGTH
(LC MAX)		  0.331 inch (8.40 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.236 inch (6.0 mm) PLATE THICKNESS
(T MAX)		 0.031 inch (0.80 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 3.50/795 kN/LB WEIGHT  0.100 lb/ft (0.15 kg/m)
$2.98

Original: $9.92

-70%
#25 Roller Chain x 10 feet + 2 Free Connecting Links—

$9.92

$2.98
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

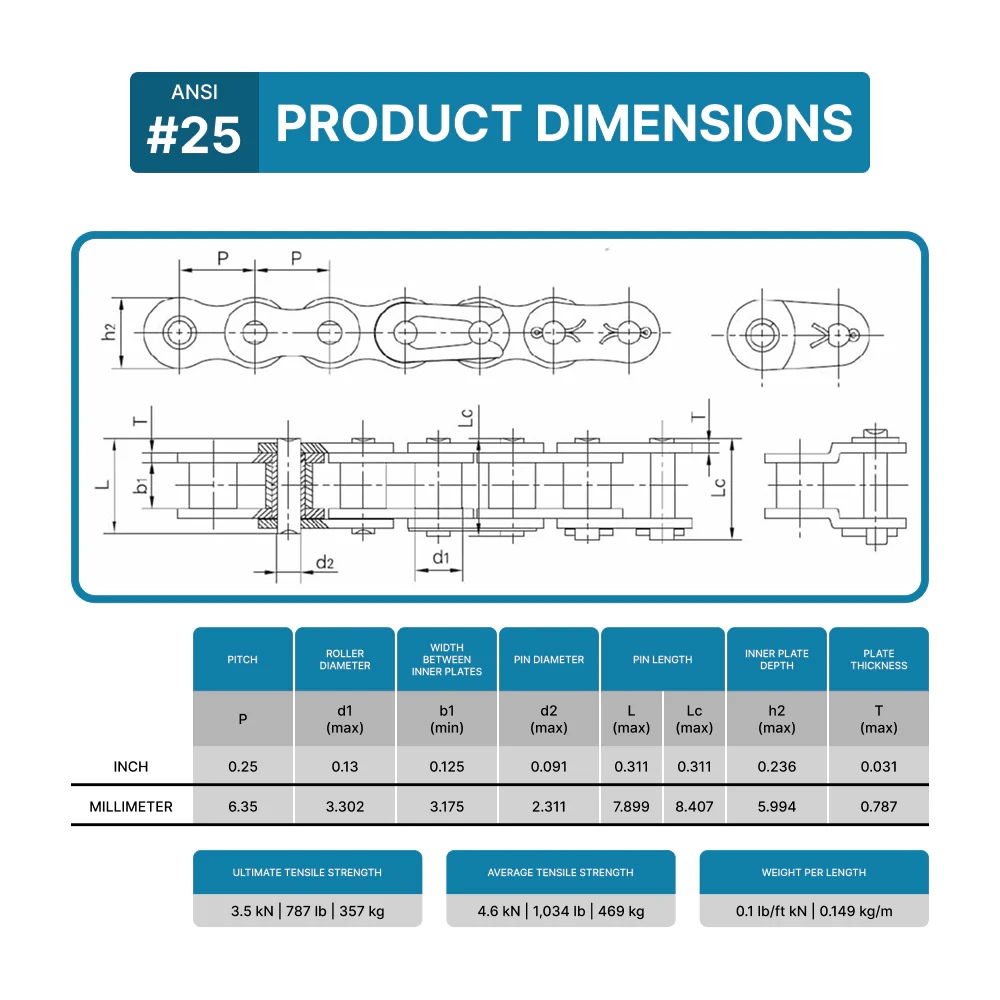

ANSI No

 #25 LENGTH 10 ft
PITCH 0.25 inch (6.350 mm) ROLLER DIAMETER
(D1 MAX) 		 0.130 inch (3.30 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.125 inch (3.18 mm) PIN DIAMETER
(D2 MAX)		 0.091 inch (2.31 mm)
PIN LENGTH
(L MAX)		 0.311 inch (7.90 mm) PIN LENGTH
(LC MAX)		  0.331 inch (8.40 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.236 inch (6.0 mm) PLATE THICKNESS
(T MAX)		 0.031 inch (0.80 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 3.50/795 kN/LB WEIGHT  0.100 lb/ft (0.15 kg/m)
