#60SS Stainless Steel Roller Chain x 10 feet + 2 Free Connecting Links

#60SS Stainless Steel Roller Chain x 10 feet + 2 Free Connecting Links

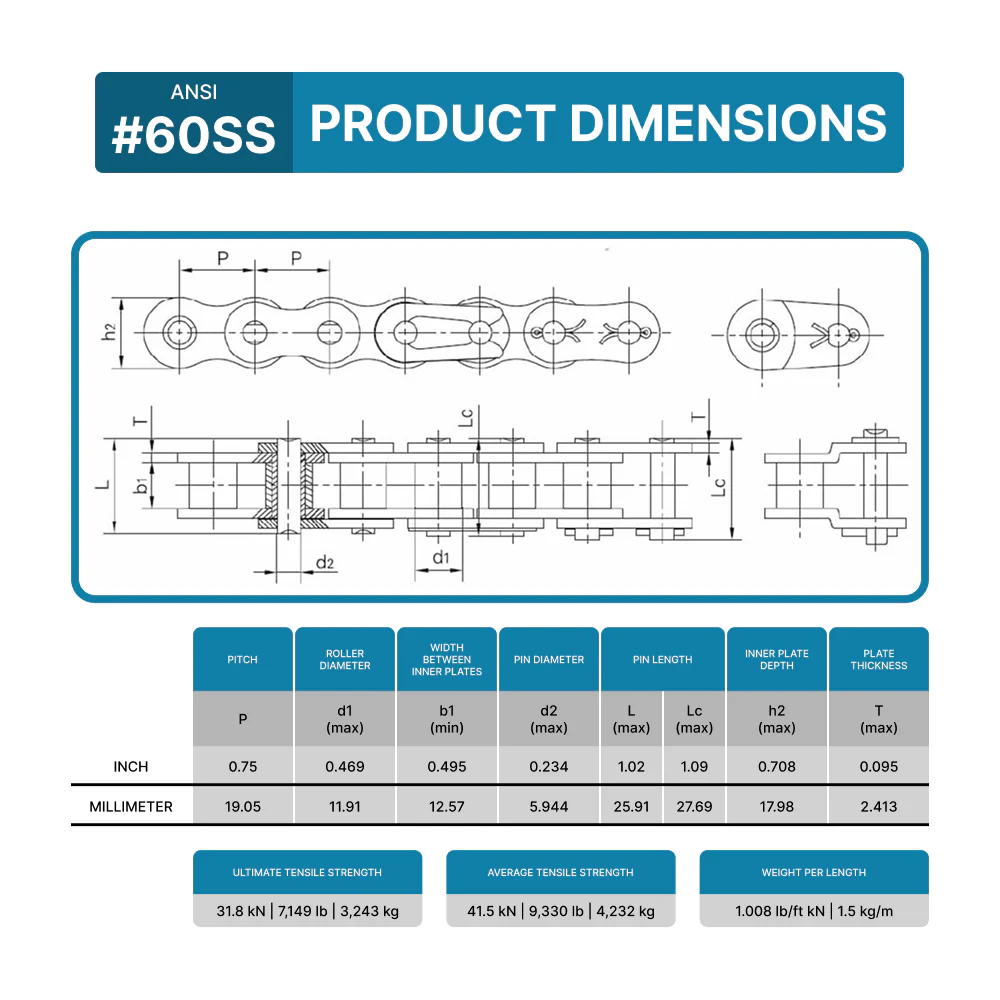

ANSI No

 #60SS  LENGTH 10 ft
PITCH 0.75 inch (19.050 mm)  ROLLER DIAMETER
(D1 MAX) 		  0.469 inch (11.91 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.495 inch (12.57 mm)  PIN DIAMETER
(D2 MAX)		 0.234 inch (5.94 mm)
PIN LENGTH
(L MAX)		 1.02 inch (25.90 mm)  PIN LENGTH
(LC MAX)		 1.09 inch (27.70 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.708 inch (18.00 mm)  PLATE THICKNESS
(T MAX)		  0.095 inch (2.42 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 31.80/7227 kN/LB  WEIGHT 1.008 lb/ft (1.5 kg/m)
$29.45

Original: $98.15

-70%
#60SS Stainless Steel Roller Chain x 10 feet + 2 Free Connecting Links—

$98.15

$29.45
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

ANSI No

 #60SS  LENGTH 10 ft
PITCH 0.75 inch (19.050 mm)  ROLLER DIAMETER
(D1 MAX) 		  0.469 inch (11.91 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.495 inch (12.57 mm)  PIN DIAMETER
(D2 MAX)		 0.234 inch (5.94 mm)
PIN LENGTH
(L MAX)		 1.02 inch (25.90 mm)  PIN LENGTH
(LC MAX)		 1.09 inch (27.70 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.708 inch (18.00 mm)  PLATE THICKNESS
(T MAX)		  0.095 inch (2.42 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 31.80/7227 kN/LB  WEIGHT 1.008 lb/ft (1.5 kg/m)
