#35SS Stainless Steel Roller Chain x 10 feet + 2 Free Connecting Links

#35SS Stainless Steel Roller Chain x 10 feet + 2 Free Connecting Links

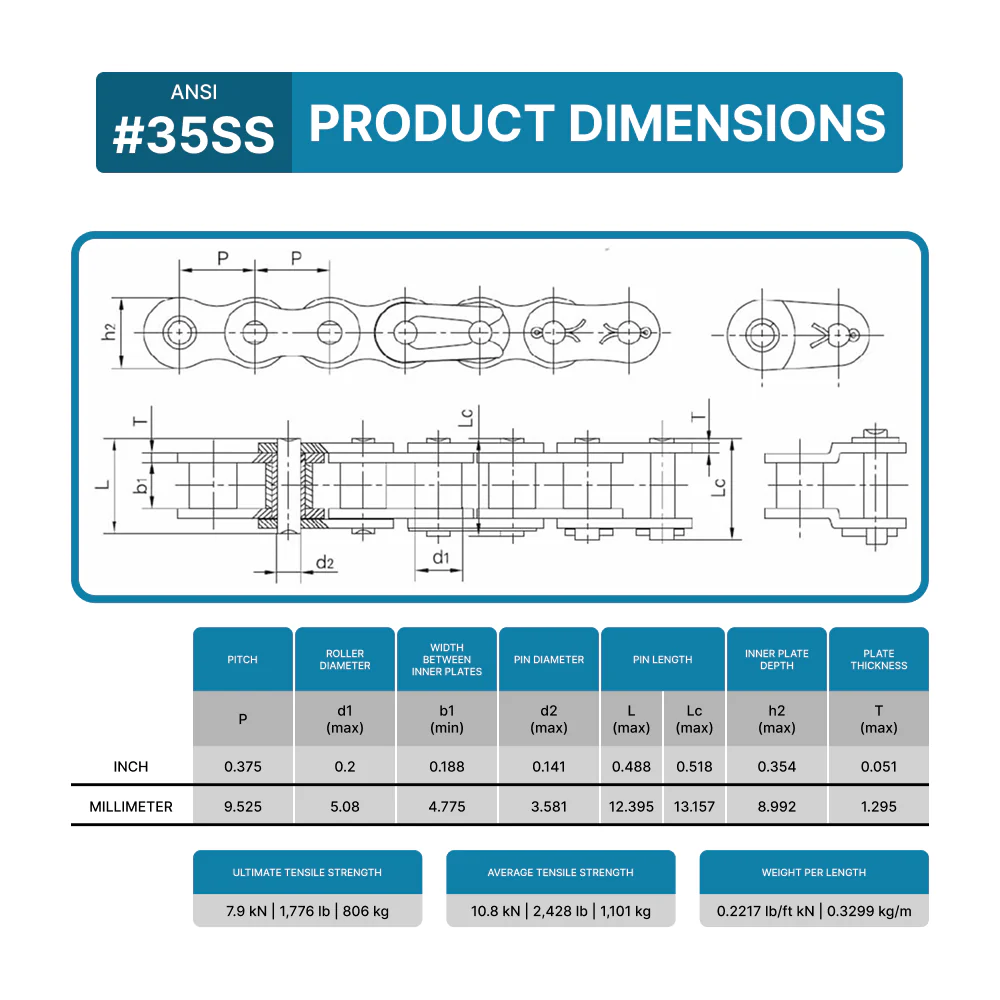

ANSI No

 #35SS LENGTH 10 ft
PITCH 0.375 inch (9.525 mm)  ROLLER DIAMETER
(D1 MAX) 		 0.2 inch (5.08 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.188 inch (4.77 mm)  PIN DIAMETER
(D2 MAX)		 0.141 inch (3.58 mm)
PIN LENGTH
(L MAX)		 0.488 inch (12.40 mm) PIN LENGTH
(LC MAX)		 0.518 inch (13.17 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.354 inch (9.0 mm) PLATE THICKNESS
(T MAX)		 0.051 inch (1.30 mm)7.90/1795 kN/LB
ULTIMATE TENSILE STRENGTH
(QMIN)		 7.90/1795 kN/LB WEIGHT  0.221749 lb/ft (0.33 kg/m)
$12.26

Original: $40.86

-70%
#35SS Stainless Steel Roller Chain x 10 feet + 2 Free Connecting Links—

$40.86

$12.26
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

ANSI No

 #35SS LENGTH 10 ft
PITCH 0.375 inch (9.525 mm)  ROLLER DIAMETER
(D1 MAX) 		 0.2 inch (5.08 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.188 inch (4.77 mm)  PIN DIAMETER
(D2 MAX)		 0.141 inch (3.58 mm)
PIN LENGTH
(L MAX)		 0.488 inch (12.40 mm) PIN LENGTH
(LC MAX)		 0.518 inch (13.17 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.354 inch (9.0 mm) PLATE THICKNESS
(T MAX)		 0.051 inch (1.30 mm)7.90/1795 kN/LB
ULTIMATE TENSILE STRENGTH
(QMIN)		 7.90/1795 kN/LB WEIGHT  0.221749 lb/ft (0.33 kg/m)
