#40-3 Triplex Triple Strand Roller Chain x 10 feet + 2 Connecting Links

#40-3 Triplex Triple Strand Roller Chain x 10 feet + 2 Connecting Links

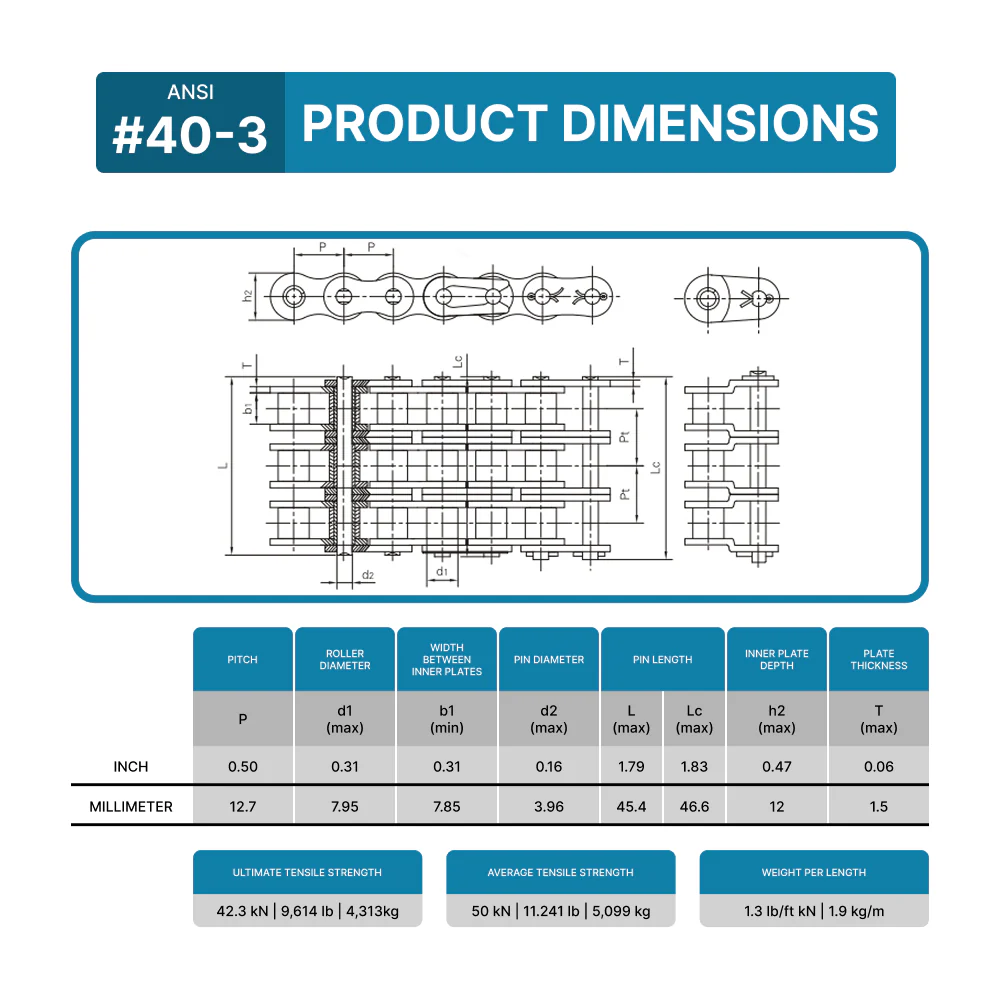

ANSI No

 #40-3  LENGTH 10 ft
PITCH 0.50 inch (12.7 mm) ROLLER DIAMETER
(D1 MAX) 		 0.31 inch (7.95 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.31 inch (7.85 mm)  PIN DIAMETER
(D2 MAX)		 0.16 inch (3.96 mm)
PIN LENGTH
(L MAX)		 1.79 inch (45.4 mm) PIN LENGTH
(LC MAX)		 1.83 inch (46.6 mm)
INNER PLATE DEPTH
(H2 MAX)		  0.47 inch (12 mm) PLATE THICKNESS
(T MAX)		 0.06 inch (1.5 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 42.3/9,614 kN/LB WEIGHT 1.3 lb/ft (1.9 kg/m)
$13.49

Original: $44.95

-70%
#40-3 Triplex Triple Strand Roller Chain x 10 feet + 2 Connecting Links—

$44.95

$13.49
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

ANSI No

 #40-3  LENGTH 10 ft
PITCH 0.50 inch (12.7 mm) ROLLER DIAMETER
(D1 MAX) 		 0.31 inch (7.95 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.31 inch (7.85 mm)  PIN DIAMETER
(D2 MAX)		 0.16 inch (3.96 mm)
PIN LENGTH
(L MAX)		 1.79 inch (45.4 mm) PIN LENGTH
(LC MAX)		 1.83 inch (46.6 mm)
INNER PLATE DEPTH
(H2 MAX)		  0.47 inch (12 mm) PLATE THICKNESS
(T MAX)		 0.06 inch (1.5 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 42.3/9,614 kN/LB WEIGHT 1.3 lb/ft (1.9 kg/m)
