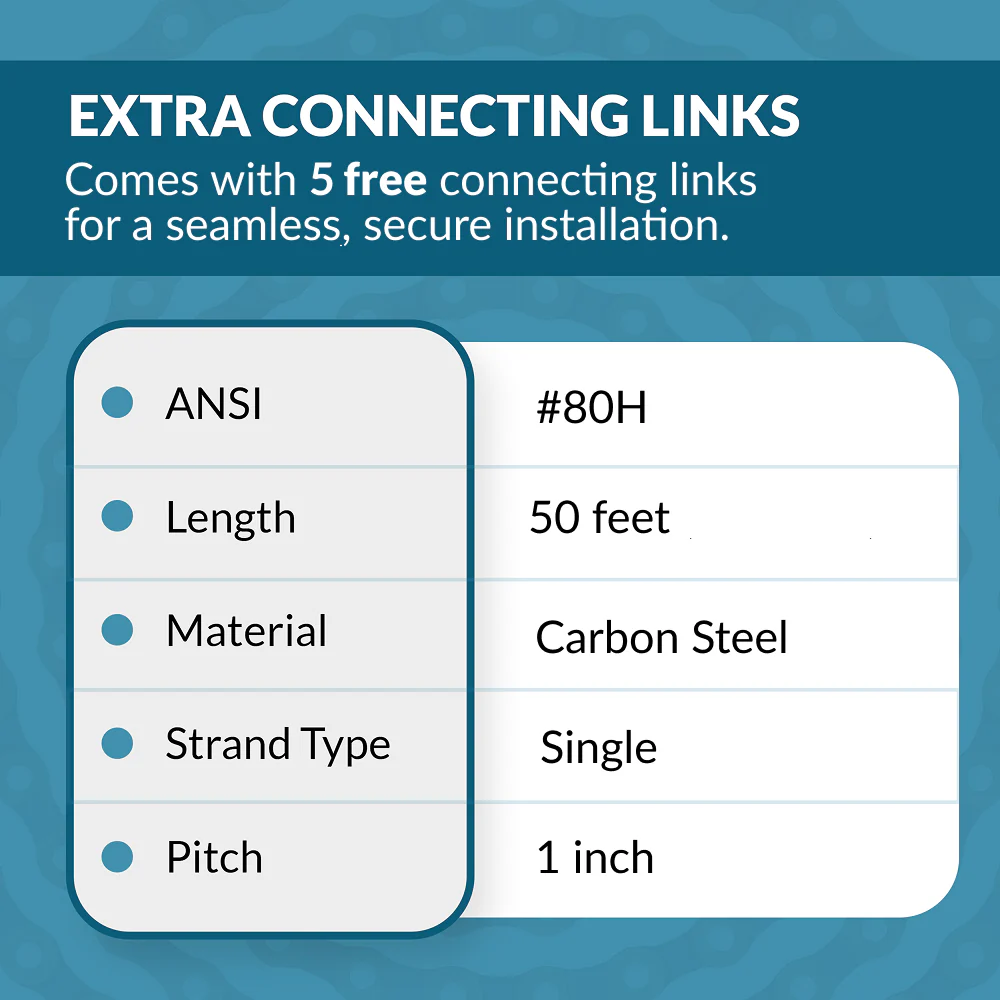

#80H Heavy Duty Roller Chain x 50 feet + 5 Free Connecting Links

#80H Heavy Duty Roller Chain x 50 feet + 5 Free Connecting Links

ANSI No

 #80H LENGTH 50 ft
PITCH 1.0 inch (25.400 mm) ROLLER DIAMETER
(D1 MAX) 		 0.625 inch (15.88 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.620 inch (15.75 mm) PIN DIAMETER
(D2 MAX)		  0.311 inch (7.92 mm)
PIN LENGTH
(L MAX)		 1.425 inch (36.20 mm) PIN LENGTH
(LC MAX)		 1.484 inch (37.70 mm)
INNER PLATE DEPTH
(H2 MAX)		  0.944 inch (24.00 mm) PLATE THICKNESS
(T MAX)		 0.157 inch (4.00 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 56.70/12886 kN/LB WEIGHT  2.083 lb/ft (3.1 kg/m)
$96.88

Original: $322.95

-70%
#80H Heavy Duty Roller Chain x 50 feet + 5 Free Connecting Links—

$322.95

$96.88
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

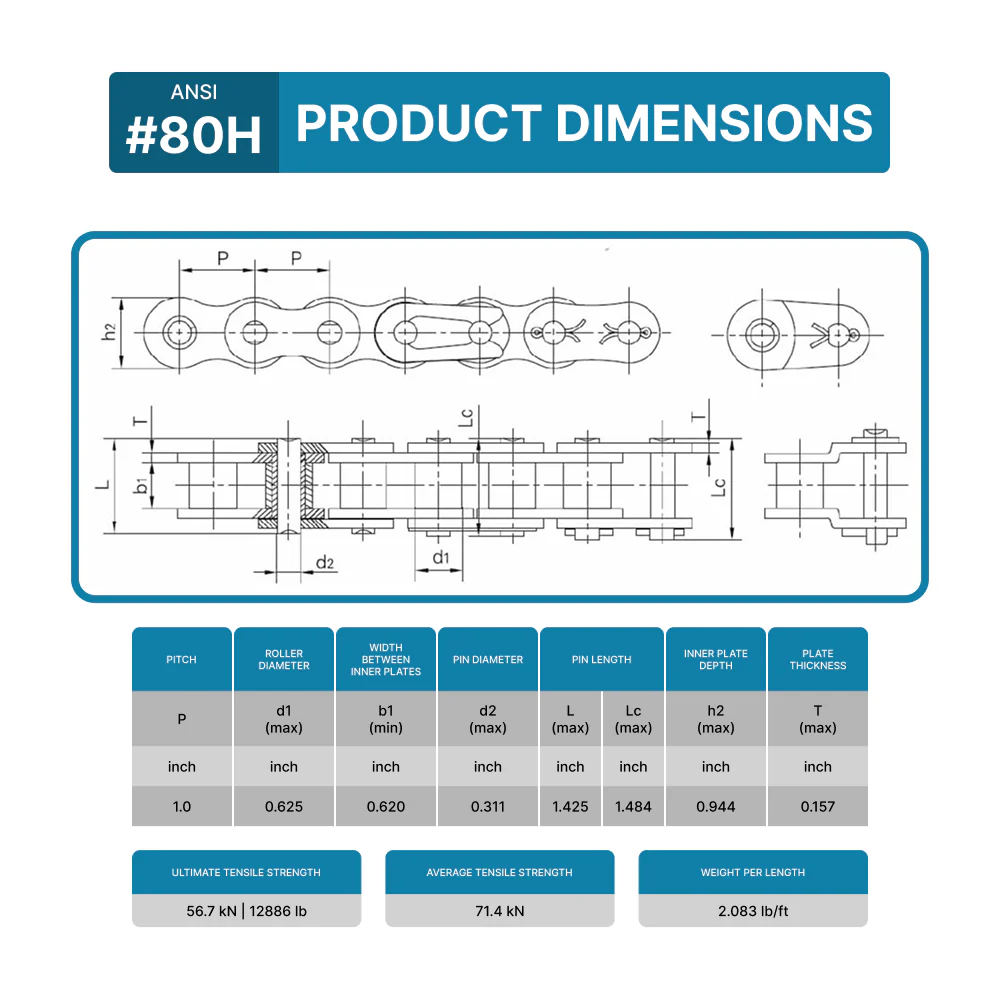

ANSI No

 #80H LENGTH 50 ft
PITCH 1.0 inch (25.400 mm) ROLLER DIAMETER
(D1 MAX) 		 0.625 inch (15.88 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.620 inch (15.75 mm) PIN DIAMETER
(D2 MAX)		  0.311 inch (7.92 mm)
PIN LENGTH
(L MAX)		 1.425 inch (36.20 mm) PIN LENGTH
(LC MAX)		 1.484 inch (37.70 mm)
INNER PLATE DEPTH
(H2 MAX)		  0.944 inch (24.00 mm) PLATE THICKNESS
(T MAX)		 0.157 inch (4.00 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 56.70/12886 kN/LB WEIGHT  2.083 lb/ft (3.1 kg/m)
