#41 Roller Chain x 100 feet + 10 Free Connecting Links

#41 Roller Chain x 100 feet + 10 Free Connecting Links

ANSI No

 #41 LENGTH 100 ft
PITCH  0.5 inch (12.7 mm)  ROLLER DIAMETER
(D1 MAX) 		 0.306 inch (7.77 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		  0.246 inch (6.25 mm)  PIN DIAMETER
(D2 MAX)		 0.141 inch (3.58 mm)
PIN LENGTH
(L MAX)		 0.541 inch (13.75 mm) PIN LENGTH
(LC MAX)		  0.590 inch (15.00 mm)
INNER PLATE DEPTH
(H2 MAX)		  0.390 inch (9.91 mm) PLATE THICKNESS
(T MAX)		 0.051 inch (1.30 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 6.67/1516 kN/LB WEIGHT  0.276 lb/ft (0.41 kg/m)
$38.98

Original: $129.95

-70%
#41 Roller Chain x 100 feet + 10 Free Connecting Links—

$129.95

$38.98
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

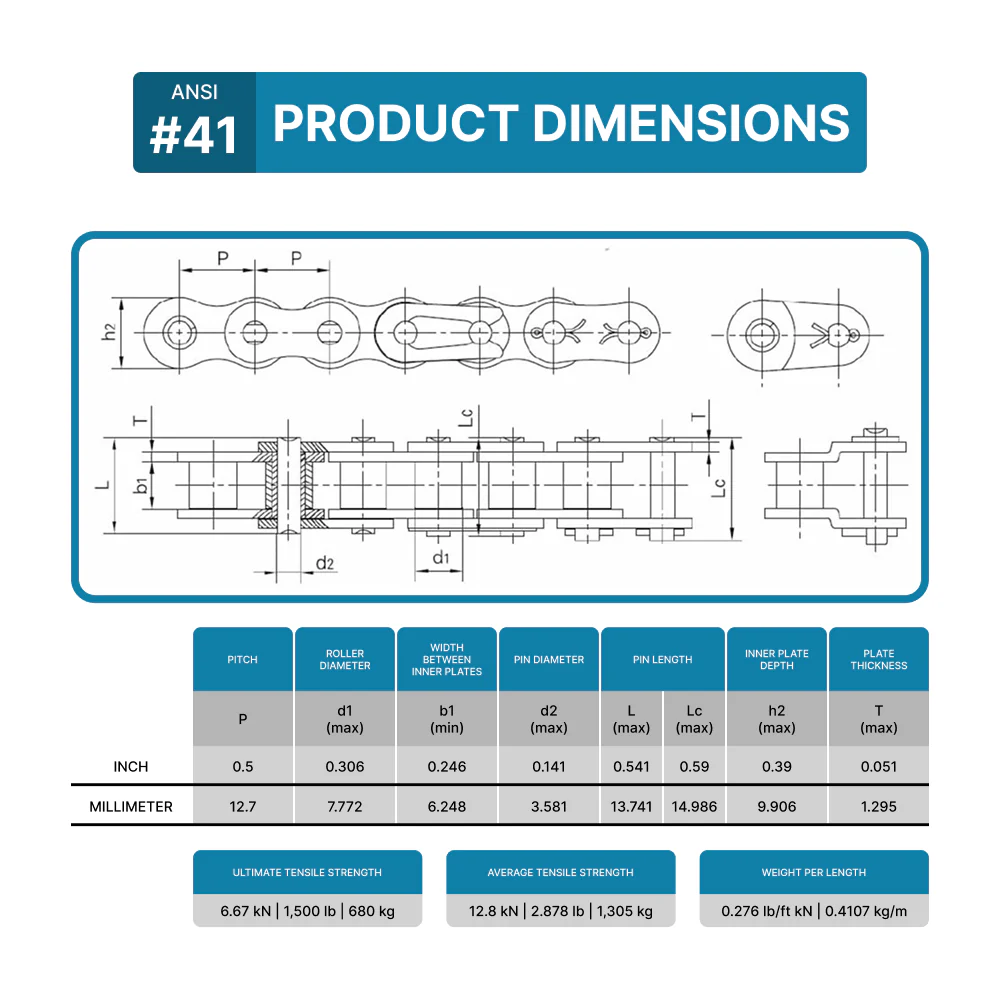

ANSI No

 #41 LENGTH 100 ft
PITCH  0.5 inch (12.7 mm)  ROLLER DIAMETER
(D1 MAX) 		 0.306 inch (7.77 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		  0.246 inch (6.25 mm)  PIN DIAMETER
(D2 MAX)		 0.141 inch (3.58 mm)
PIN LENGTH
(L MAX)		 0.541 inch (13.75 mm) PIN LENGTH
(LC MAX)		  0.590 inch (15.00 mm)
INNER PLATE DEPTH
(H2 MAX)		  0.390 inch (9.91 mm) PLATE THICKNESS
(T MAX)		 0.051 inch (1.30 mm)
ULTIMATE TENSILE STRENGTH
(QMIN)		 6.67/1516 kN/LB WEIGHT  0.276 lb/ft (0.41 kg/m)
