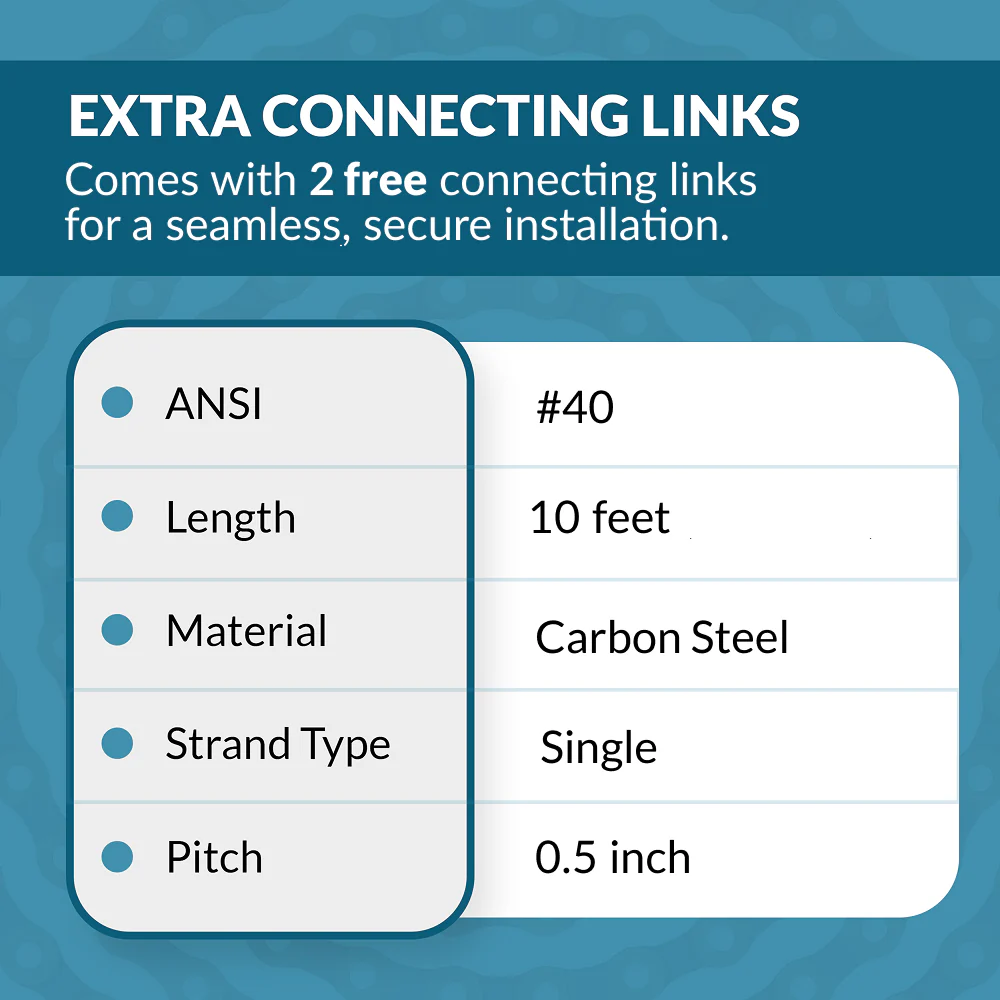

#40 Roller Chain x 10 feet + 2 Free Connecting Links
|

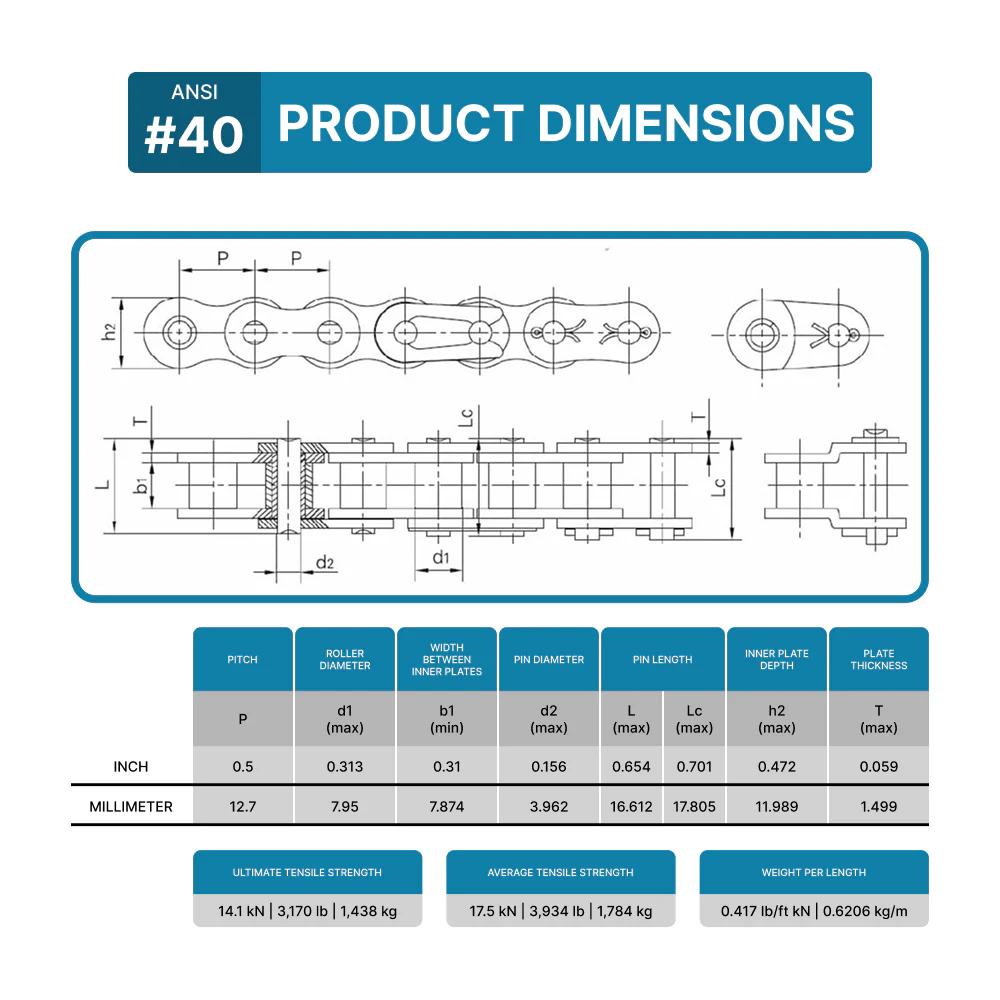

ANSI No |
#40 | LENGTH | 10 ft |
| PITCH | 0.5 in (12.7 mm) | ROLLER DIAMETER (D1 MAX) |
0.313 in (7.95 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.310 in (7.85 mm) | PIN DIAMETER (D2 MAX) |
0.156 in (3.96 mm) |
| PIN LENGTH (L MAX) |
0.654 in (16.60 mm) | PIN LENGTH (LC MAX) |
0.701 in (17.80 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.472 in (12.0 mm) | PLATE THICKNESS (T MAX) |
0.059 in (1.50 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
14.10 kN / 3,205 lb | WEIGHT | 0.417 lb/ft (0.62 kg/m) |
$4.30
Original: $14.35
-70%#40 Roller Chain x 10 feet + 2 Free Connecting Links—
$14.35
$4.30
Description
|
ANSI No |
#40 | LENGTH | 10 ft |
| PITCH | 0.5 in (12.7 mm) | ROLLER DIAMETER (D1 MAX) |
0.313 in (7.95 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.310 in (7.85 mm) | PIN DIAMETER (D2 MAX) |
0.156 in (3.96 mm) |
| PIN LENGTH (L MAX) |
0.654 in (16.60 mm) | PIN LENGTH (LC MAX) |
0.701 in (17.80 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.472 in (12.0 mm) | PLATE THICKNESS (T MAX) |
0.059 in (1.50 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
14.10 kN / 3,205 lb | WEIGHT | 0.417 lb/ft (0.62 kg/m) |
